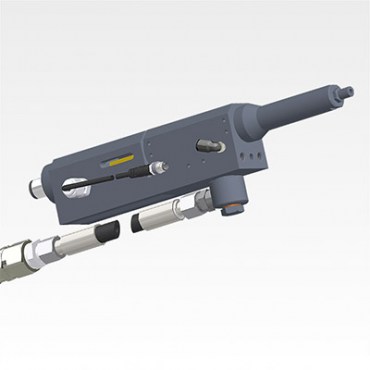

Riveting head with process control (TC) control for series production. For standard rivets 2.0 - 6.4 mm.

Benefits overview:

• The head is small and light (can be placed on robots with a load capacity of up to 10 kg)
• Jaws developed according to the customer's needs to the type of rivet used
• Integrated ring sensor, ensures process control
• Easy maintenance without the need for special tools
• Quick replacement of nosepiece and clamping head
• Low value of transmitted vibrations
• Low noise, easy operation, reliability

Item number: 99-0194

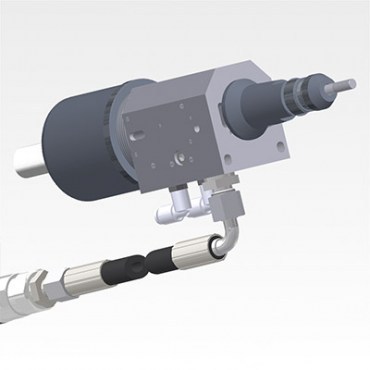

Riveting head with process control (TC) for series production. For installation of standard rivet nuts and rivet bolts.

Benefits overview:

• The head is small and light (can be placed on robots with a minimum load capacity of 10 kg)
• Easy maintenance without the need for special tools
• Low noise, easy operation, reliability
• Integrated valve that controls automatic mandrel removal
• Low value of transmitted vibrations
• Low noise, easy operation, reliability

Item number: 99-0195

Loading device for blind rivets. The rivet loading unit is intended for loading a rivet into a riveting device (manual / automated).

Benefits overview:

• Universal solution for all types of blind rivets
• Compact dimensions
• Possibility of adaptation for working with hand tools
• Quick connection for service
• Supplied as part of a modular SAN system.

Item number: 99-0196

Loading device for rivet nuts. The nut loader is designed for reliable loading of the nut riveting head in automatic operation.

Benefits overview:

• Universal solution for all types of rivet nuts
• Compact dimensions
• Possibility of adaptation for working with hand tools
• Quick connection for service
• Supplied as part of a modular SAN system.

Item number: 99-0197

Head / loader movement. The head movement is intended for use with a loader or a riveting head. SAN4HM is designed for nut rivets.

Benefits overview:

• Two directions (to end positions)
• Intelligent solution
• Supplied as part of a modular SAN system

Item number: 99-0198

The linear movement is intended for use with a loader or riveting head. SAN2LM is designed for blind rivets.

Benefits overview:

• The movement ensures repeatable accuracy of the approach of the end positions
• Two directions (to end positions)
• Intelligent solution
• Supplied as part of a modular SAN system.

Item number: 99-0199

Powerful industrial pneumatic-hydraulic amplifier is designed to drive riveting heads with a hydraulic piston.

Benefits overview:

• Hydraulic quick coupler
• Automatic deaeration and oil filling
• Electrical control
• Supplied as part of a modular SAN system

Item number: 99-0200

Supply vibrating unit for blind rivets

Benefits overview:

• Easy to move thanks to castors
• Can power up to 3 riveting heads - a cost-saving solution
• Supplied as part of a modular SAN system

Item number: 99-0201

Supply vibrating unit for rivet nuts

Benefits overview:

• Easy to move thanks to castors
• Can power up to 3 riveting heads - a cost-saving solution
• Supplied as part of a modular SAN system

Item number: 99-0202

The auxiliary transport unit is designed to extend the pneumatic transport of rivets at distances longer than 5 m.

Benefits overview:

• Distance approximately 2.5 - 5 m
• Can be combined with another auxiliary transport unit for longer distances
• Integrated flow sensor
• Supplied as part of a modular SAN system

Item number: 99-0203

Control of systems processing rivet nuts and blind rivets. K1 controls the riveting process based on user commands and evaluates the riveting quality control data. K1 is intended for control of riveting head only.

Benefits overview:

• User-friendly "SANassist" software
• No calibration is required
• Supplied as part of a modular SAN system

Item number: 99-0204

Control of system processing rivet nuts and blind rivets. K2 controls and manages the riveting process based on user commands and evaluates the riveting quality control data. K2 can control the whole system - therefore it has extended inputs and outputs.

Benefits overview:

• User-friendly "SANassist" software
• No calibration is required
• The whole system consists of up to 40 sensors
• Supplied as part of a modular SAN system

Item number: 99-0205

The panel is designed for monitoring the status of the SAN system, its settings and manual control, thanks to which easy maintenance of the device is ensured.

Benefits overview:

• User-friendly "SANassist" software
• No calibration is required
• The whole system consists of up to 40 sensors
• Supplied as part of a modular SAN system

Item number: 99-0206

Riveting head for rivet nuts M3 to M12.

Benefits overview:

• High performance at small dimensions
• Precise continuous stroke adjustment
• Easy operation

Item number: 99-0152

Hydraulic riveting head for setting blind rivets with a diameter of 4 to 8 mm.

Benefits overview:

• Developed for the processing of structured and festive nets
• Large working stroke and traction
• Connection to the drive unit via quick coupling
• Easy maintenance

Item number: 99-0153
